Description

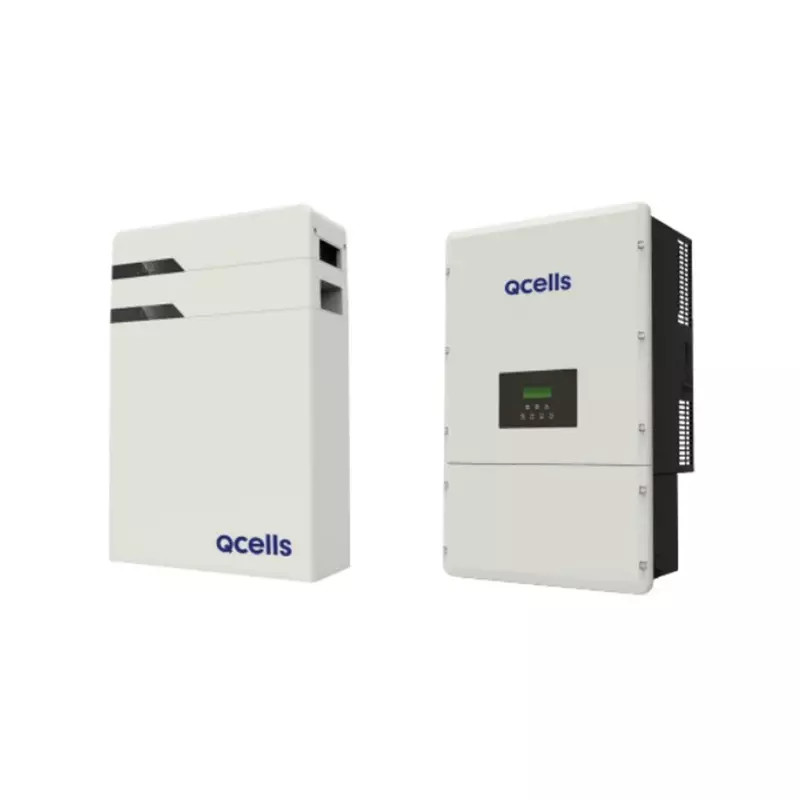

Hanwha QCells Battery Energy Storage System with Hybrid Inverter
NOTE: Free returns within 30 days if the item isn’t as described. Weight and Dimensions are separate for each product so please check for shipping.
The Qcells Q.HOME+ ESS HYB-G1 is a modular hybrid solar inverter system designed for residential applications. It integrates seamlessly with one or more lithium-ion batteries to provide backup power, load shifting, and energy independence. This system includes an 8.6 kW hybrid inverter paired with one 6.3 kWh lithium-ion battery module, scalable up to ~18.9 kWh.
Product Specifications
| Manufacturer | Hanwha Q Cells | Product Name | Hanwha QCells Battery Energy Storage System with Hybrid Inverter |
|---|---|---|---|
| Condition | new | Length | 36 In |
| Width | 22 In | Height | 10.9 In |
| Weight | 130 LB | Watts | 8600 |
| Volts | 240 | Power Output | 8.6 kVA |
| Output Current | 32 A | Total Capacity | 6.3 kWh |
| Warranty |
Product Waranty: 10 Years |
||
BESS Includes:
- 1 x 8.6kW Solar Hybrid Inverter
- 2 x 6.3kWh Batteries
Key Features:
- Modular and scalable: expand battery capacity up to 18.9 kWh
- Backup capability: delivers up to ~7.5 kW AC during outages.
- High efficiency: up to 95.7% conversion efficiency
- Depth of Discharge (DoD): 90%
- Remote monitoring and diagnostics via app/web portal
Product Details:
- Mfr Part Number: Q.HOME+ ESS HYB-G1
- Inverter Power Output: 8600 Watts
- Battery Power Output: 6300 Watts (Expandable)
- Voltage 120/240
- Current: 32 A
- Inverter Weight: 130 lb
- Battery Weight: 148.8 lb
- Inverter Dimension: 36 × 22× 10.9 in
- Battery Dimension: 18.3 x 7.6 x 23.1 in
